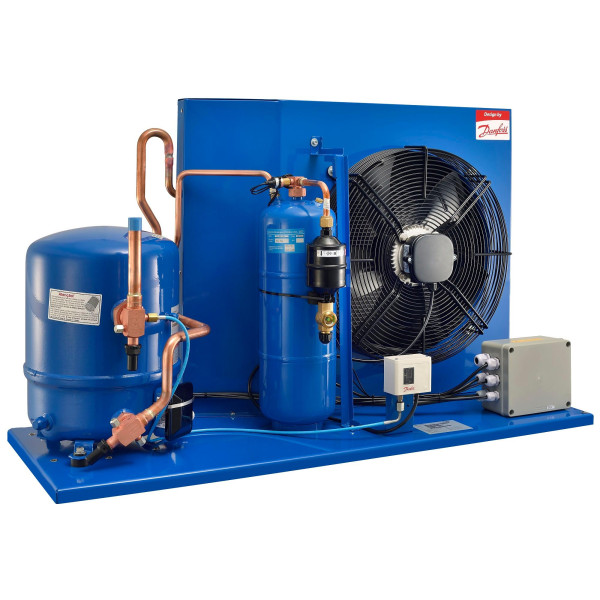

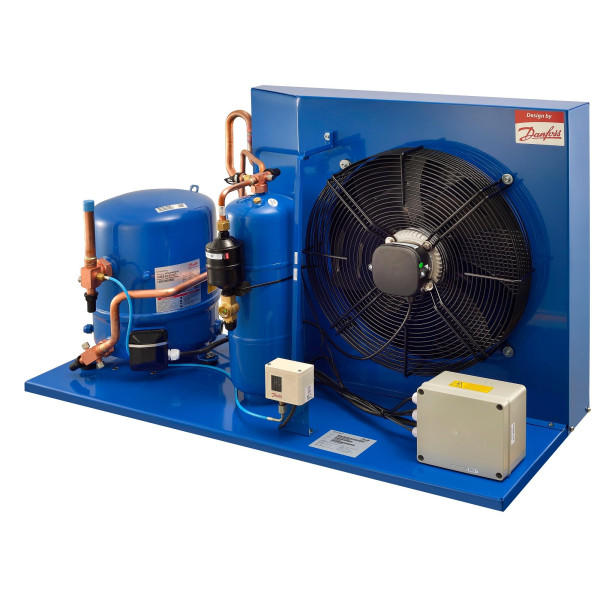

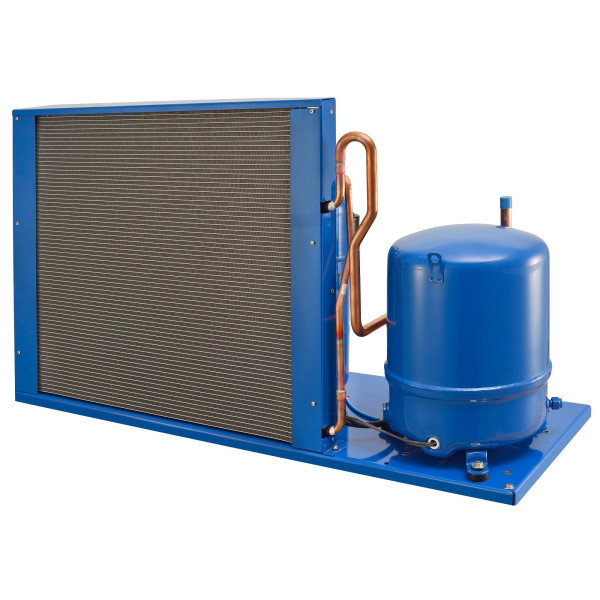

Danfoss OP-HJZ019D39Q Condensing Unit Microchannel Coil 1.5HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan with Reciprocating Compressor MTZ19-3 115N0270
SKU
G115F0270
Danfoss OP-HJZ019D39Q Condensing Unit Microchannel Coil 1.5HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan with Reciprocating Compressor MTZ19-3 115N0270
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 9,169 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1/2 Suction and 3/8 Liquid Side. 1 Axial Fan 13-3/4 in
Weight : 141.1 LBR
Volume : 5.07 FTQ
Model : HJZ019D39Q
UPC-EAN :
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 9,169 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1/2 Suction and 3/8 Liquid Side. 1 Axial Fan 13-3/4 in
Weight : 141.1 LBR
Volume : 5.07 FTQ
Model : HJZ019D39Q
UPC-EAN :
Danfoss OP-HJZ019D32Q Condensing Unit 1.5HP Medium Temp for Coolers
This item will replace various brands and models including but not limited to:
Replaces:HCM018E32Q, HCZ018E32Q, HJM018D32Q, 114N3203, HJZ018D32Q, 114N3209, 115F0270
G115F0270
New
Data sheet
- Product Characteristic
- Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 9,169 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1/2 Suction and 3/8 Liquid Side. 1 Axial Fan 13-3/4 in - Weigth
- 141.1 LBR
- Model
- HJZ019D39Q
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8418.99.8015
- Base Unit
- EA
- Dimensions
- 18.23 x 39.37 x 12.2
Specific References
- UPC
- MPN
- HJZ019D39Q
