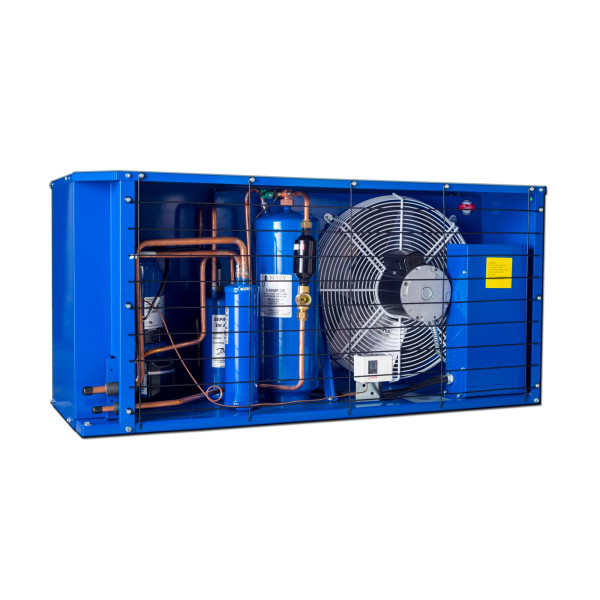

Danfoss OP-HGZ064D40Q Condensing Unit Microchannel Coil 5.5HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 2 Fans Enclosure with Reciprocating Compressor MTZ064-3 115N0657
SKU
G115F0657
Danfoss OP-HGZ064D40Q Condensing Unit Microchannel Coil 5.5HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 2 Fans Enclosure with Reciprocating Compressor MTZ064-3 115N0657
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 37,047 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 1-1/8 Suction and 1/2 Liquid Side. 2 Axial Fan 17-3/4 in
Volume : 34.5 FTQ
Weight : 401.24 LBR
Model : HGZ064D40Q
UPC-EAN :
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 37,047 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 1-1/8 Suction and 1/2 Liquid Side. 2 Axial Fan 17-3/4 in
Volume : 34.5 FTQ
Weight : 401.24 LBR
Model : HGZ064D40Q
UPC-EAN :
Danfoss OP-HGZ064D40Q Condensing Unit Medium Temp for Coolers
This item will replace various brands and models including but not limited to:
Replaces:HGM064E40Q, HGZ064E40Q, HGM064D40Q, 114N3293, HGZ064D40Q, 114N3299, 115F0657
G115F0657
New
Data sheet
- Product Characteristic
- Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 37,047 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 1-1/8 Suction and 1/2 Liquid Side. 2 Axial Fan 17-3/4 in - Model
- HGZ064D40Q
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8418.99.8015
- Base Unit
- EA
- Dimensions
- 28.15 x 47.24 x 31.5
Specific References
- UPC
- MPN
- HGZ064D40Q
