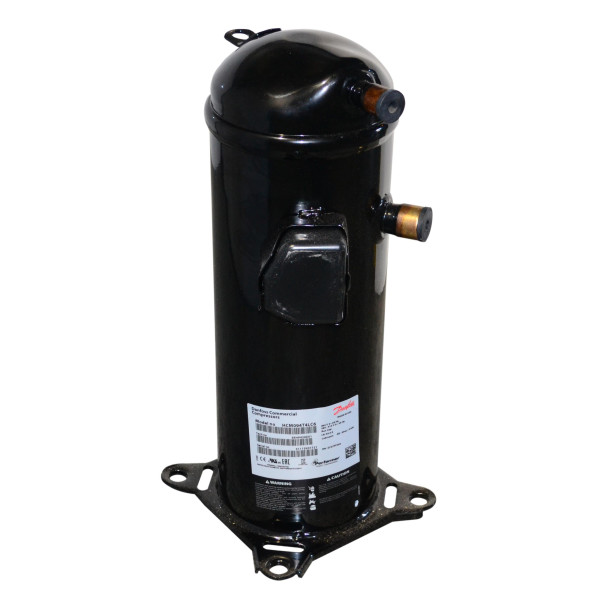

Danfoss HCP094T4LC6 7.8 tons 94, 000 btu/h R407C Scroll compressor for Air conditioning 380-415/3/50, 460/3/60 (V/Ph/Hz) Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L0601, 121L0598
SKU
G0315.HCM0904
Danfoss HCP094T4LC6 7.8 tons 94, 000 btu/h R407C Scroll compressor for Air conditioning 380-415/3/50, 460/3/60 (V/Ph/Hz) Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L0601, 121L0598
Danfoss HCP094T4LC6 hermetic scroll compressor designed for air conditioning systems with fixed speed scroll technology. Replaces 120U0581, 120U0601, HCM094T4LC6
Compatible with refrigerant R407C for residential and commercial HVAC air conditioning applications
Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for commercial HVAC installations
Includes internal overload motor protection and PVE oil lubrication with about 2.66 L oil charge approx 90 oz
ODF brazed connections with 1 1/8 in suction line and 7/8 in discharge line for air conditioning system installation
Weight : 101.11 LBR
Model : HCP094T4LC6
UPC-EAN : 5702428210935
Danfoss HCP094T4LC6 hermetic scroll compressor designed for air conditioning systems with fixed speed scroll technology. Replaces 120U0581, 120U0601, HCM094T4LC6
Compatible with refrigerant R407C for residential and commercial HVAC air conditioning applications
Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for commercial HVAC installations
Includes internal overload motor protection and PVE oil lubrication with about 2.66 L oil charge approx 90 oz
ODF brazed connections with 1 1/8 in suction line and 7/8 in discharge line for air conditioning system installation
Weight : 101.11 LBR
Model : HCP094T4LC6
UPC-EAN : 5702428210935
G0315.HCM0904
New
Data sheet
- Product Feature
- Compatible with refrigerant R407C for residential and commercial HVAC air conditioning applications
- Danfoss HCP094T4LC6 hermetic scroll compressor designed for air conditioning systems with fixed speed scroll technology. Replaces 120U0581, 120U0601, HCM094T4LC6
- Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for commercial HVAC installations
- Includes internal overload motor protection and PVE oil lubrication with about 2.66 L oil charge approx 90 oz
- ODF brazed connections with 1 1/8 in suction line and 7/8 in discharge line for air conditioning system installation
- Weight
- 101.11 LBR
- Model
- HCP094T4LC6
- UPC-EAN
- 5702428210935
- Sales Unit
- EA
- Origin
- USA
- US Tariff Code
- 8414.30.8070
- Base Unit
- EA
- Segment
- Air Conditioning
