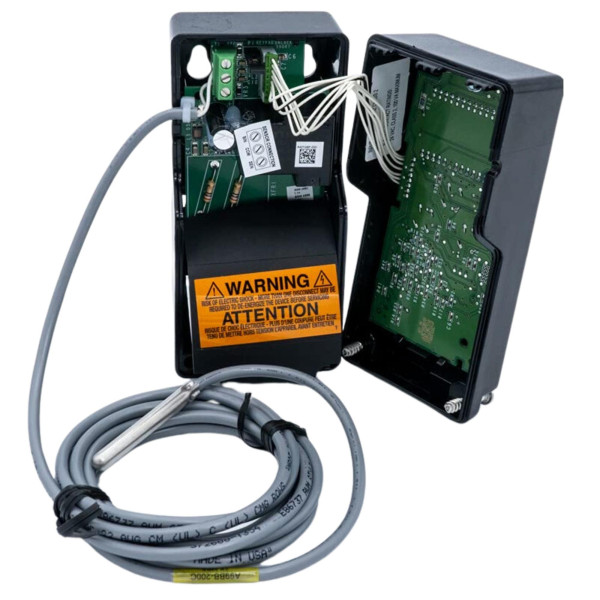

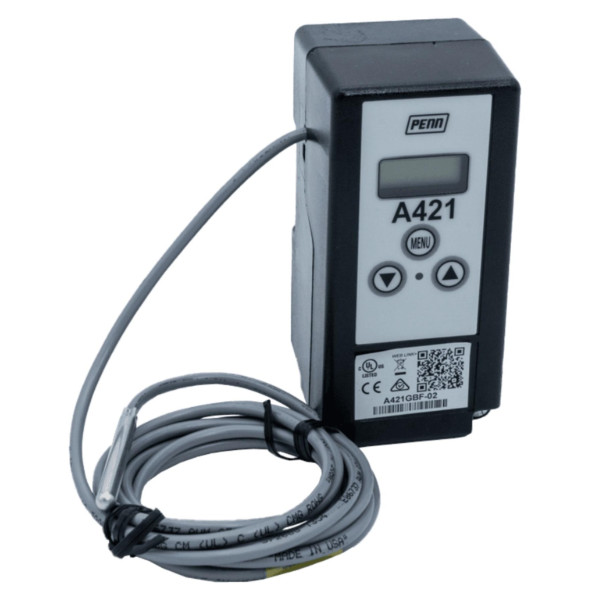

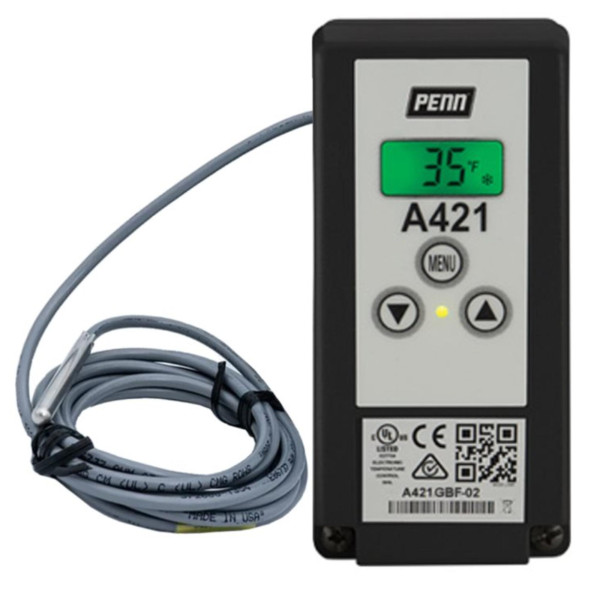

PENN A421GBF-02C Electronic Temperature Control JCI Low-Voltage 24 VAC, -40 F a 212 F, IP20, Includes an A99BB-200C temperature sensor with 6.6 ft cable
SKU
GA421GBF-02C
PENN A421GBF-02C Electronic Temperature Control JCI Low-Voltage 24 VAC, -40 F a 212 F, IP20, Includes an A99BB-200C temperature sensor with 6.6 ft cable
Basic and Advanced Programming Menu: provides two levels of parameter adjustment and control setup, allowing you to set up advanced features in one menu and easily adjust basic parameters in the other menu
Other applications include supply, makeup, and mixed air temperature control, temperature actuated valve control, supply and makeup air damper and fan control, and condenser fan control based on condenser temperature

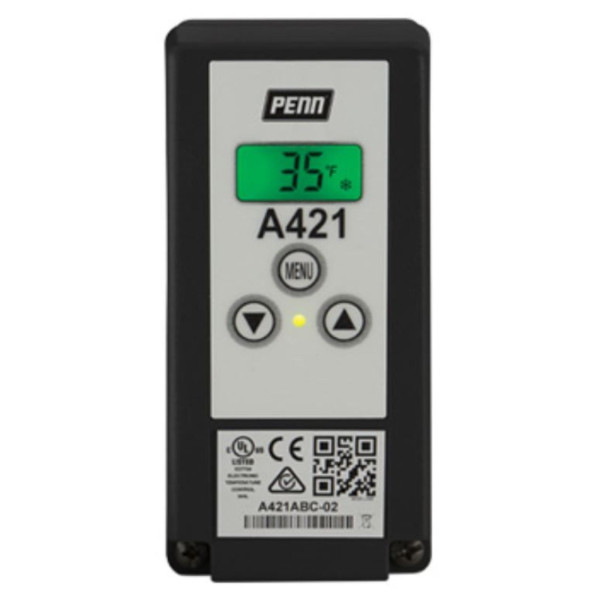

Control Front Panel LCD: displays the temperature, parameters, and status and allows you to adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status
Adjustable Anti-Short Cycle Delay: allows you to select the minimum time the output relay remains off before the next on cycle; avoiding short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.
Volume : 0.188 FTQ
Weight : 1.5 LBR
Model : A421GBF-02C
Basic and Advanced Programming Menu: provides two levels of parameter adjustment and control setup, allowing you to set up advanced features in one menu and easily adjust basic parameters in the other menu
Other applications include supply, makeup, and mixed air temperature control, temperature actuated valve control, supply and makeup air damper and fan control, and condenser fan control based on condenser temperature
Control Front Panel LCD: displays the temperature, parameters, and status and allows you to adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status
Adjustable Anti-Short Cycle Delay: allows you to select the minimum time the output relay remains off before the next on cycle; avoiding short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.
Volume : 0.188 FTQ
Weight : 1.5 LBR
Model : A421GBF-02C
GA421GBF-02C
New
Data sheet
- Product Feature
- Adjustable Anti-Short Cycle Delay: allows you to select the minimum time the output relay remains off before the next on cycle; avoiding short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.
- Basic and Advanced Programming Menu: provides two levels of parameter adjustment and control setup, allowing you to set up advanced features in one menu and easily adjust basic parameters in the other menu
- Control Front Panel LCD: displays the temperature, parameters, and status and allows you to adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status
- Other applications include supply, makeup, and mixed air temperature control, temperature actuated valve control, supply and makeup air damper and fan control, and condenser fan control based on condenser temperature
- Weight
- 1.5 LBR
- Volume
- 0.188 FTQ
- Model
- A421GBF-02C
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 9032.10.0090
- Base Unit
- EA
- Dimensions
- 5 x 5 x 13
